- ETC3 Thermal Cycler
- Product name：Thermal Cycler
- Chinese name：基因扩增仪
- Product model：ETC3
- Design idea：
Tel：400-086-6869
一、Product Introduction

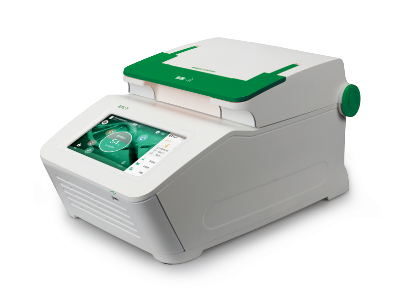

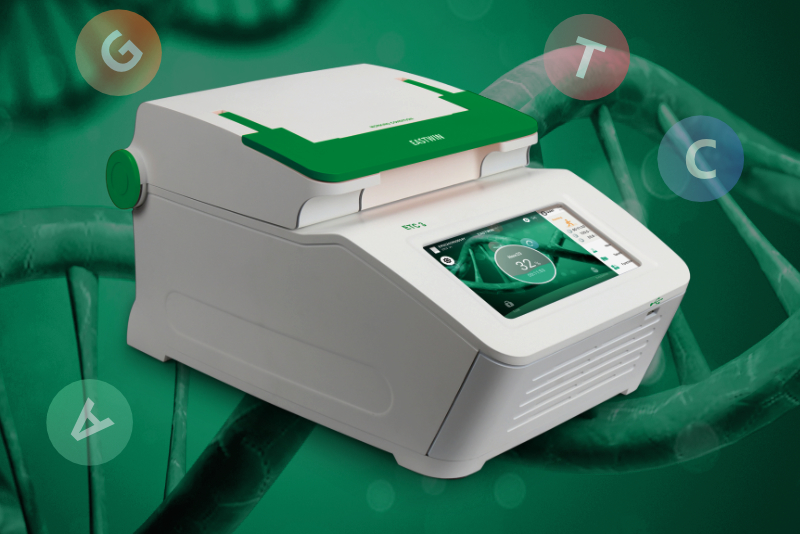

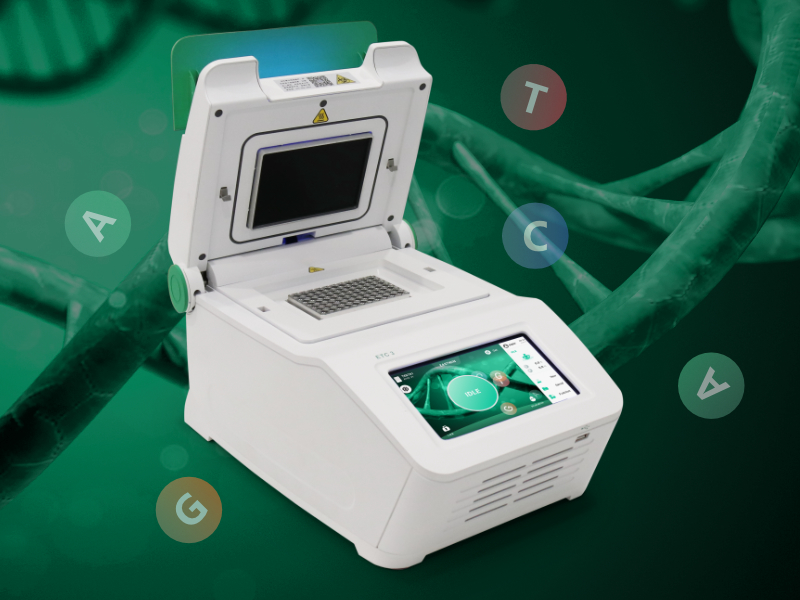

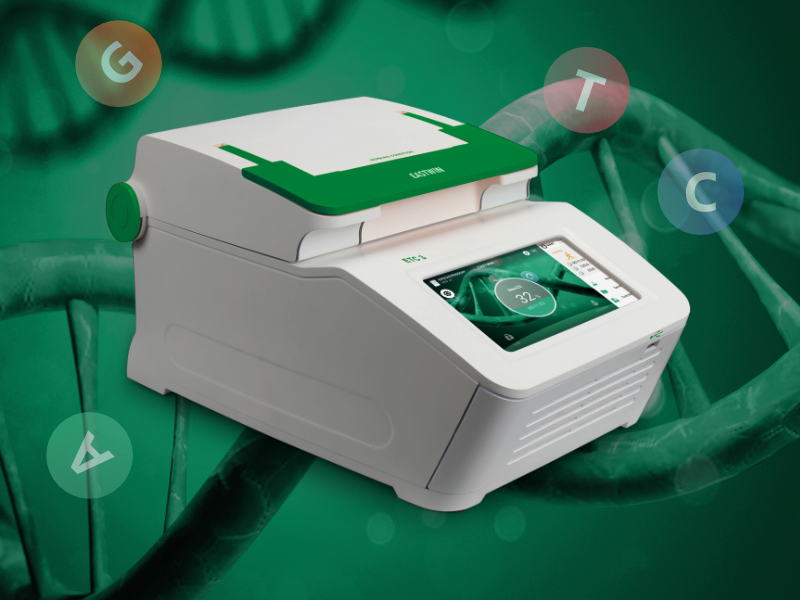

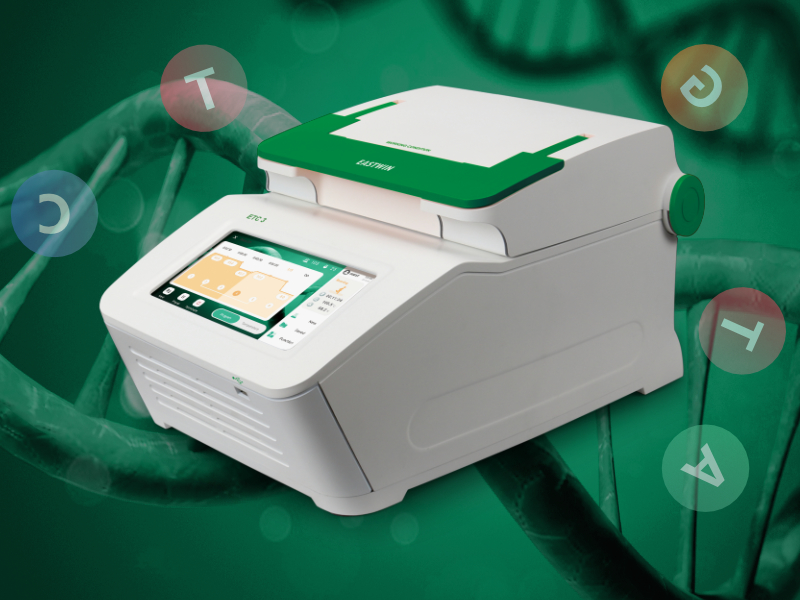

ETC3 Thermal Cycler
ETC3 is a high-performance model built on our company's classic PCR platform. While inheriting the classic features, it incorporates more powerful functions designed for clustered users, with super interaction between the PC side and the instrument side, centralized monitoring of the running status, centralized batch distribution of programs, generation of operation record reports, user permission management, etc., bringing you a more ultimate, smooth, and portable operation experience!
二、Features
01 EASTWIN high-performance PCR

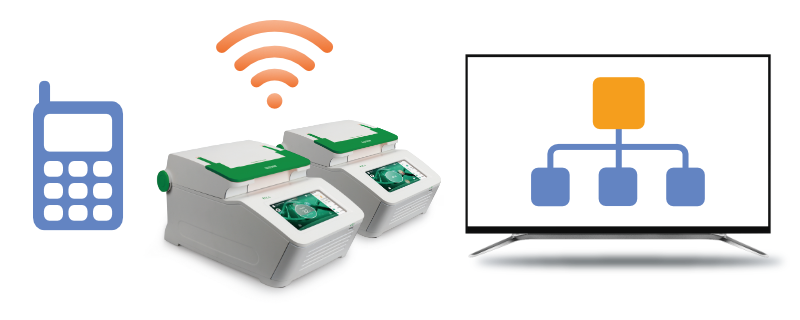

02 Networkable Control

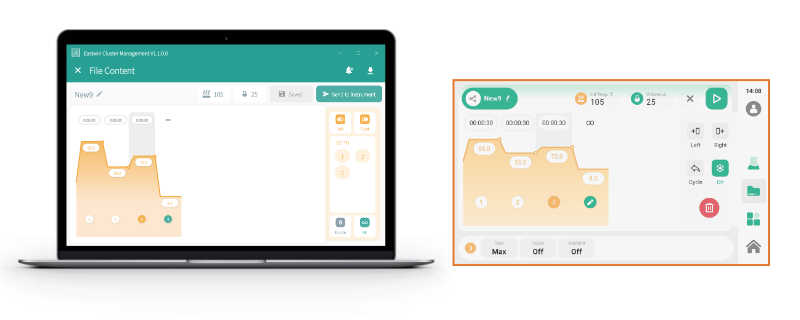

03 Available on Windows (PC), Android (instrument), and iOS/Android (mobile). User-friendly interface and powerful functions.

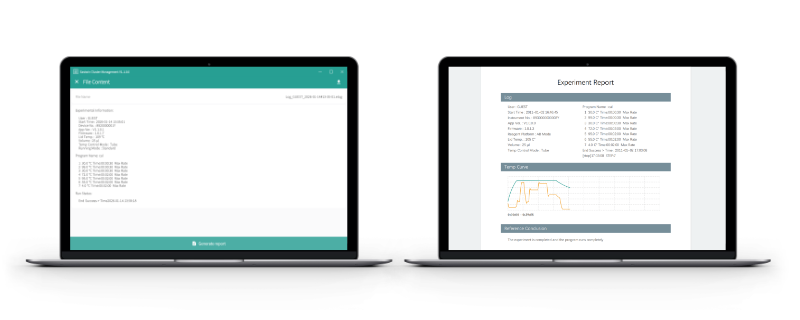

04 Generate Run Reports
05 Centralized Status Monitoring & Batch PCR Program Distribution

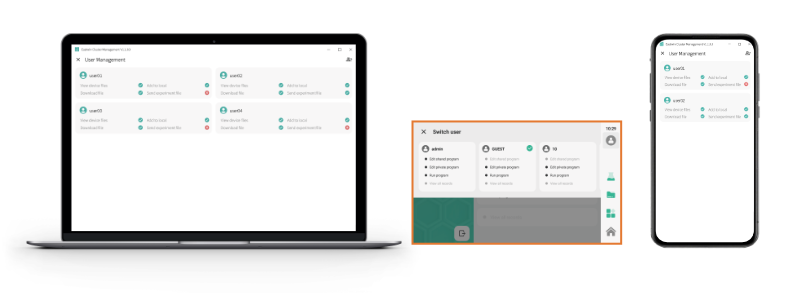

06 User Permission Management System
07 Remote File Access and Download
 |
 |
 |
|
03 EASTWIN ETC Series Thermal Cycler Specifications

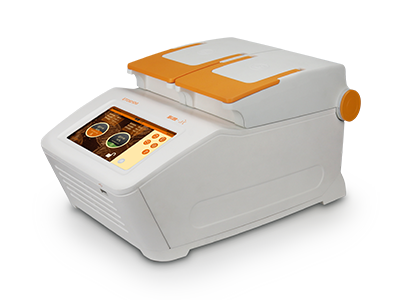

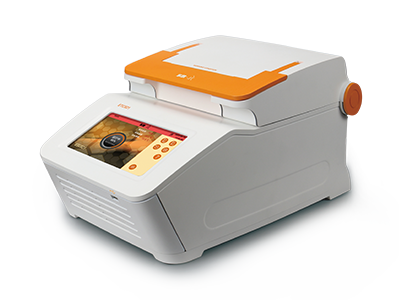

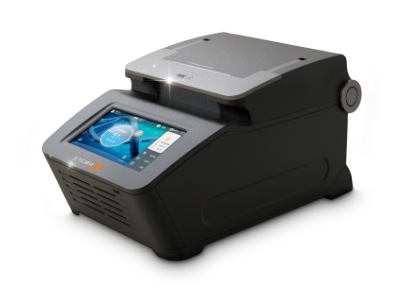

| No. | PARAMETER | ETC811X | ETC821 | ETC821DG | ETC3 |
| 1 | Product Appearance |
 |
 |
 |
 |
| 2 | Block Model (aluminum alloy block) | 0.2mL×96 wells, 384 wells, In-situ, flat plate | 0.2mL×2×48 wells | 0.2mL×96 wells, 384 wells | |
| 3 | Effective Sample Capacity | 96 (Consumables: single tube, 8-tube strip, 12-tube strip, non-skirted plate, semi-skirted plate)；384 (Consumables: Microplate); other models can be customized. | 2×48 (Consumables: single tube, 8-tube strip) | 96 (Consumables: single tube, 8-tube strip, 12-tube strip, non-skirted plate, semi-skirted plate)；384 (Consumables: Microplate); other models can be customized. | |
| 4 |
Global Wide-Voltage Power Supply （100-240V～ 50/60Hz 1000VA） |
● | ● | ● | ● |
| 5 | Temperature Accuracy | ≦±0.1°C | |||
| 6 | Block Temperature Control Accuracy | ≦0.1°C | |||
| 7 | Block Temperature Uniformity | ≦±0.3°C@55°C | ≦±0.2°C@55°C | ||
| 8 | Max.Heating Rate | ≥5.0°C/s | ≥5.0°C/s | ||
| 9 | Max.Cooling Rate | ≥5.0°C/s | ≥6.0°C/s | ||
| 10 | Block Temperature Control Technology | Peltier 3-zone Peltier independent temperature control + distributed block temperature compensation (using PC series long-life Peltier) | New high-performance Peltier | ||
| 11 | Block Temperature Setting Range | 0.0-105.0°C | |||
| 12 | Hot Lid Temperature Setting Range | 30-110°C，Auto/OFF (Hot lid heating can be enabled or disabled) | |||
| 13 | Gradient (12 columns, range 30-100°C, span 1-42°C) | ● | ● | ● | ● |
| 14 | Wifi | ● | |||
| 15 |
Advanced Log Function (The process curve can be replayed) |
● | ● (General log, without replay function) | ● (General log, without replay function) | ● |
| 16 | Maintenance Index | ● | ● | ● | ● |
| 17 |
User Permissions (share files/private programs, running programs, no visitors, custom authorization) |
● | Ordinary permission | Ordinary permission | ● |
| 18 |
Capacitive Touch Screen (no screen calibration required, Android system) |
● | Resistive touchscreen | Resistive touchscreen | ● |
| 19 |
Group Control Management (Supports status monitoring, program distribution, schedule configuration, run log report generation, and batch locking/unlocking of multiple devices via both Windows PC and Android mobile versions) |
● | |||
| 20 | Humanized Display of Operating Status (Dynamic water wave progress bar, animated operating state, breathing light indication, beeping alert) | ● | ● | ● | ● |
| 21 | Lock Screen (Non-visitor mode) | ● | ● | ● | ● |
| 22 | One-Click Incubation | ● | ● | ||
| 23 | Dimension (L×W×H) | Product size: 427×288×227mm Carton size: 540×450×385mm | |||
| 24 | Weight | N.W.: 9.7kg G.W.: 14.5kg | |||
| 25 | Recommended Applications | For scientific research | Research and clinical purposes, for common gene amplification |
Teaching, research, small throughput experiments |
It can be networked and is used for rapid gene amplification, in large laboratories or for enterprise group applications. It can generate process quality records. |
Please contact our sales team for additional performance specifications or product brochures.
|
