ETC821 Thermal Cycler
  • ETC821 Thermal Cycler
  • Product name：Thermal Cycler
  • Chinese name：基因扩增仪
  • Product model：ETC821
  • Design idea：Beautiful and Smart

Tel：400-086-6869


01 Product Introduction



ETC821

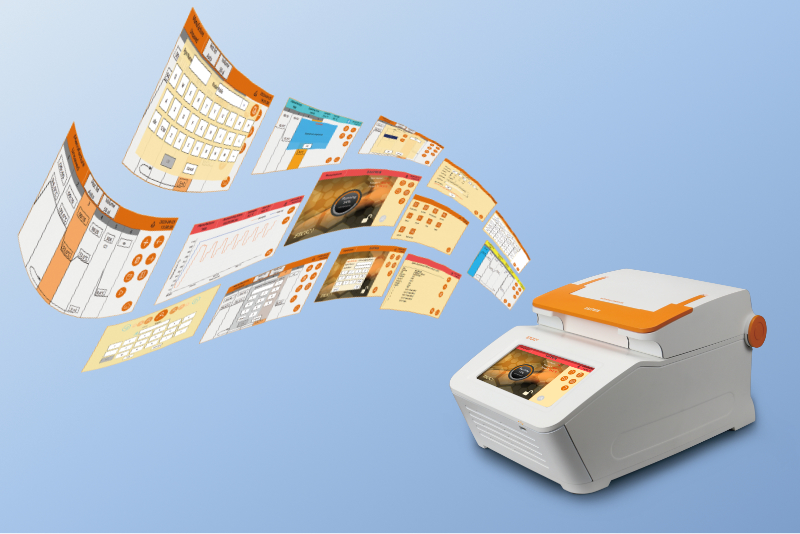

ETC821, a beautiful and smart thermal cycler, developed on the basis of the classic PCR platform. While inheriting the classical features, more intelligent, humanized and practical technological elements are added to provide a very smooth sense of operation.





02 Features

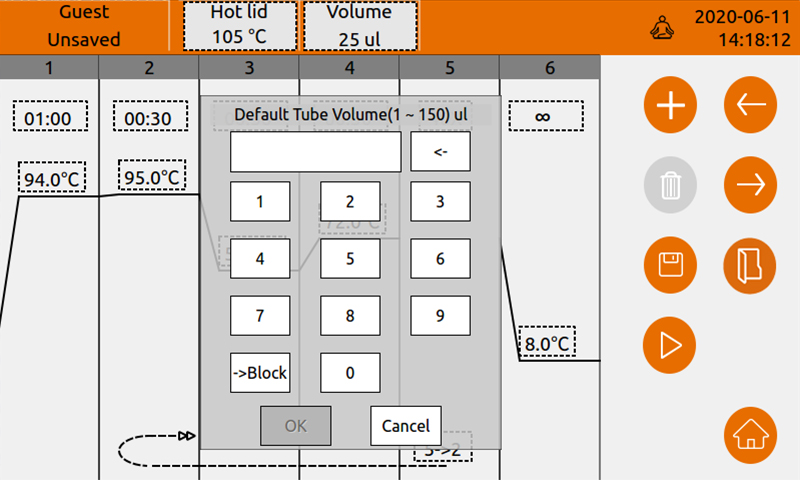

01  Intelligent Operation Experience
02  Personal Documents Management System
03  Switchable Multi-Interface
04  Especially for Industrial Users
05  Life Prediction Warning of Peltier



Characteristic Inheritance

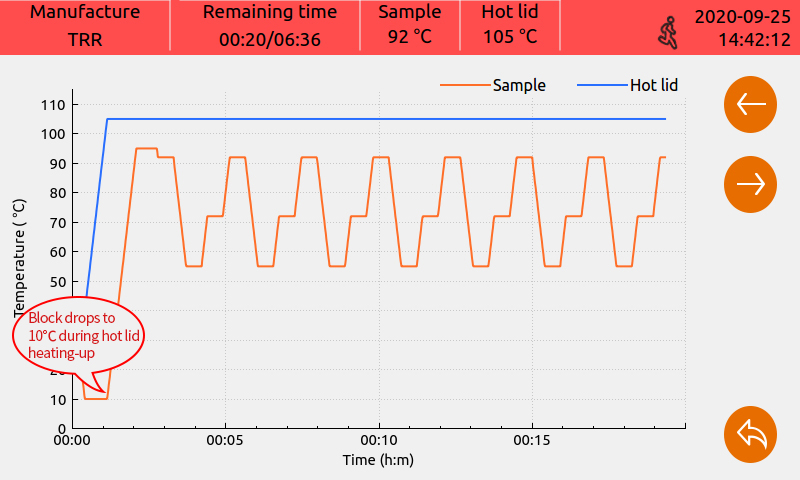

01 Inhibit Nonspecific Amplification Intelligently

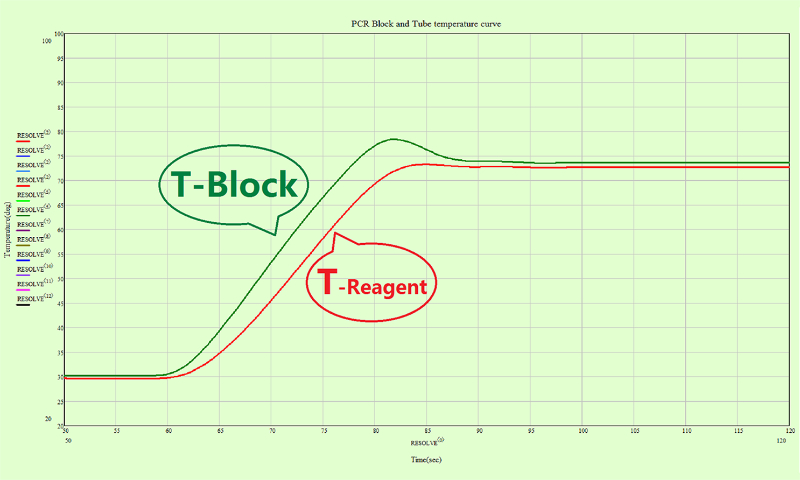

02 Prevent Evaporation

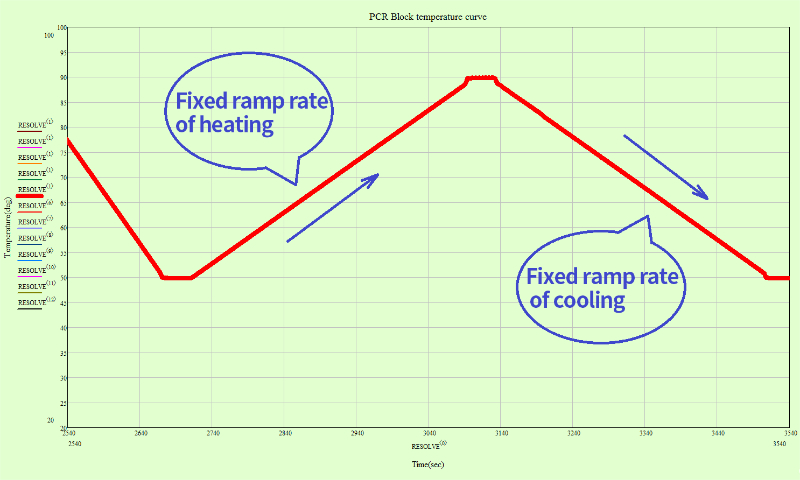

03 Adjustable Ramp Rate

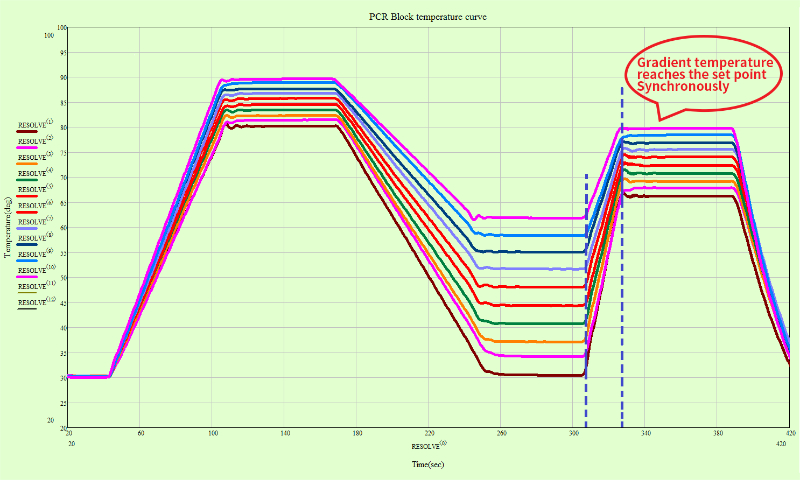

04 Gradient Temperature Arrival Simultaneously



03 Models with Optional Modules



96wells

384wells

in-situ

Flat



04 Performance Parameters



ETC821 Basic Parameters
1 Model ETC821 ETC821-384 ETC821-***
2 Block Specification 0.2mL×96 wells, aluminum alloy block 384 wells, aluminum alloy block In-situ or flat，aluminum alloy block
3 Effective Sample Capacity 96 (Consumables: single tube, 8-tube strip, 12-tube strip, non-skirted plate, semi-skirted plate) 384 (Consumables: Microplate) Customizable
4 Input Power 100~240V~   50/60Hz   1000VA
5 Dimension (L×W×H) Product size: 427×288×227mm       Carton size: 540×450×385mm
6 Weight Net Weight: 9.7kg        Gross Weight: 14.5kg

ETC821 Block Performance Parameters
7 Temperature Accuracy ≤±0.1°C
8 Block Temperature Precision ≤0.1°C
9 Block Temperature Uniformity ≤±0.3°C@55°C
10 Max. Ramp Rate ≥5°C/s
11 Avg. Ramp Rate ≥2°C/s
12 Block Temperature Control Technology 3 Peltier independently control. Distributed auxiliary heating on block edge



Please contact our sales team for additional performance specifications or product brochures.
