2-block Thermal Cycler
  • 2-block Thermal Cycler
  • Product name：Double-block Thermal Cycler
  • Chinese name：双槽基因扩增仪
  • Product model：ETC821DG
  • Design idea：One core and dual purpose!

Tel：400-086-6869


01 Product Introduction



ETC821DG

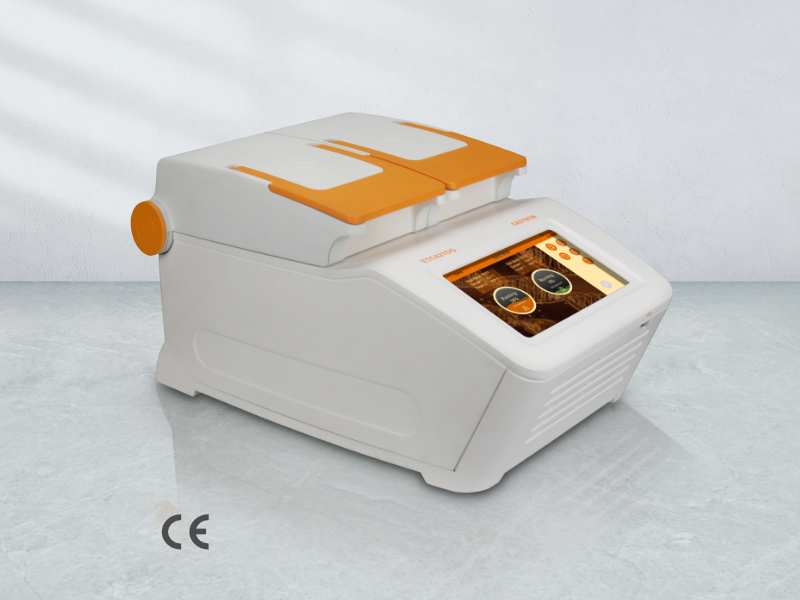

ETC821DG is a Double-block model built on the basis of the classic ETC821 model. The instrument adopts a Double-block design and can run two different PCR programs independently. It is especially suitable for small throughput experiments, such as teaching and scientific research PCR experiment.





02 Features

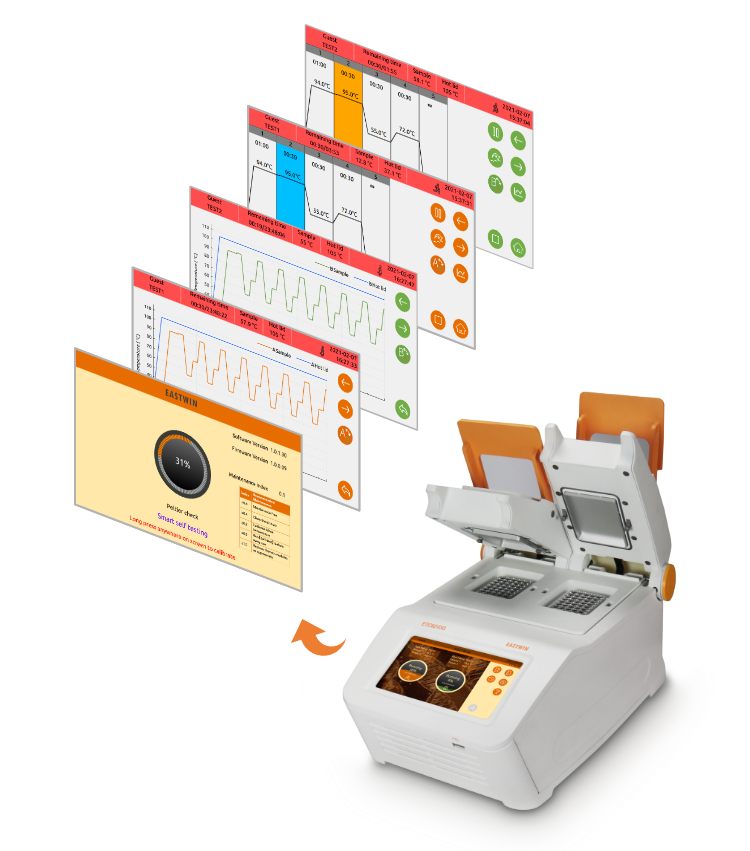

01      One instrument with multiple uses
Double-block design.
Different programs can be run independently.

02      Intelligent operation experience

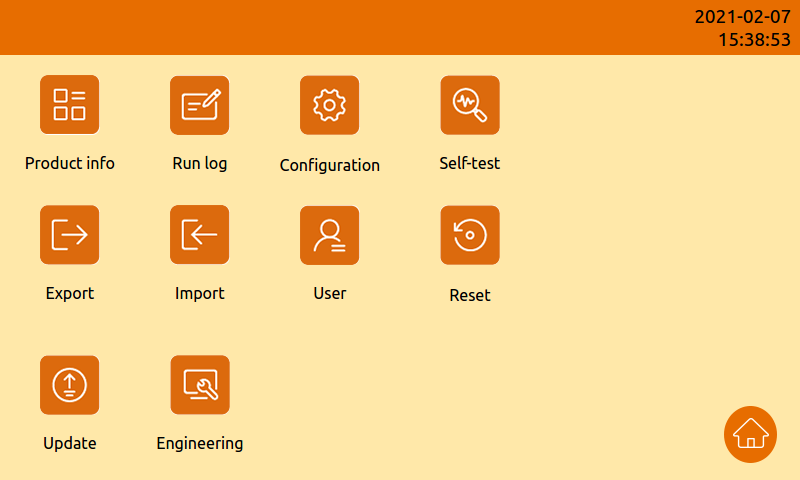

Simple software interface, powerful system functions.

03       More guaranteed experiment
Long life Peltier.

04       Inherited classic features
Double block gradient.
Professional temperature control, excellent performance.





03 Performance Parameters



Basic parameters of ETC821DG
1 Model ETC821DG
2 Blocks 2×0.2ml×48 wells，aluminum
3 Matching consumables 2×48 wells, single tube, 8-strip tubes, non-skirt, semi-skirt.
4 Input power 100-240V～ 50/60Hz  600VA
5 Size( L×W×H) Product size: 427×288×227mm  Carton size:540×450×385mm
6  Weight Net weight: 9.7kg        Gross weight: 14.5kg

Block thermal performance of ETC821DG
7 Temperature control accuracy ≦±0.1°C
8 Block temperature precision ≦0.1°C
9 Block temperature uniformity ≦±0.3°C@55°C
10 Max. Ramp rate ≥5°C/s
11 Avg. Ramp rate ≥5°C/s
12 Temperature control technology Peltier



Please contact our sales team for additional performance specifications or product brochures.
