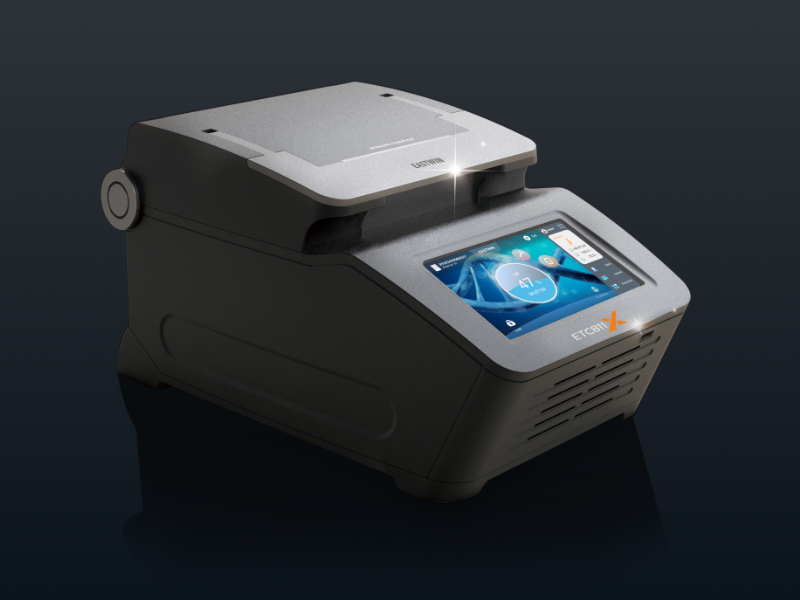

ETC811X Thermal Cycler
  • ETC811X Thermal Cycler
  • Product name：Thermal Cycler
  • Chinese name：基因扩增仪
  • Product model：ETC811X
  • Design idea：Polished by trials enduring with time

Tel：400-086-6869


01 Product Introduction



ETC811X

PCR (Polymerase Chain Reaction) is a method for enzymatic synthesis of specific DNA fragments in vitro. It consists of high temperature denaturation, low temperature annealing (renaturation) and suitable temperature extension. The cycle is carried out, and the target DNA can be rapidly amplified. It has the characteristics of high specificity, high sensitivity, simple operation and time saving.

Thermal cycler is the device for rapid amplification of genes. Based on Peltier technology, it realizes the rapid, accurate and automatic circulation of reagent temperature, thus realizing the full automation of the PCR process. It can be used not only in basic research such as gene isolation, cloning and nucleic acid sequencing, but also in clinical diagnosis of diseases.

ETC811X is a cost-effective model built on our company’s classic PCR platform. While inheriting the classic features, it brings a completely new operation experience with a brand-new graphical operation interface and more user-friendly function settings.



02 Features







01 Android System, a brand-new operating experience

02 One-click lock screen, preventing others from misoperation during operation
03 One click incubation function

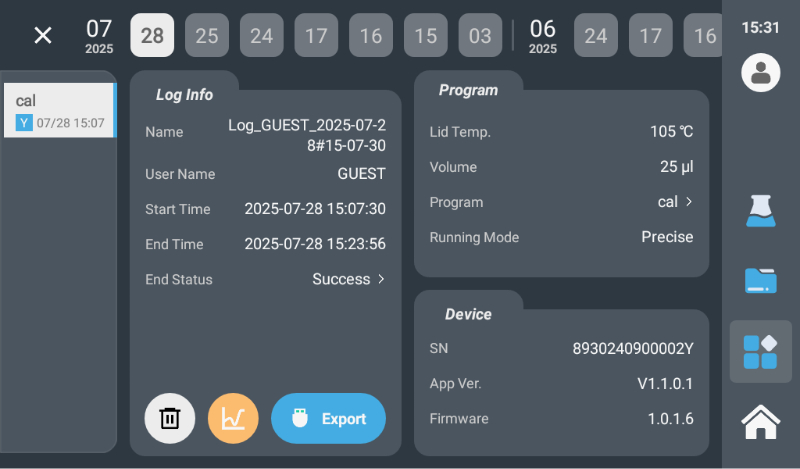

04 Detailed log function, recording the entire experimental process, can be exported as quality records.

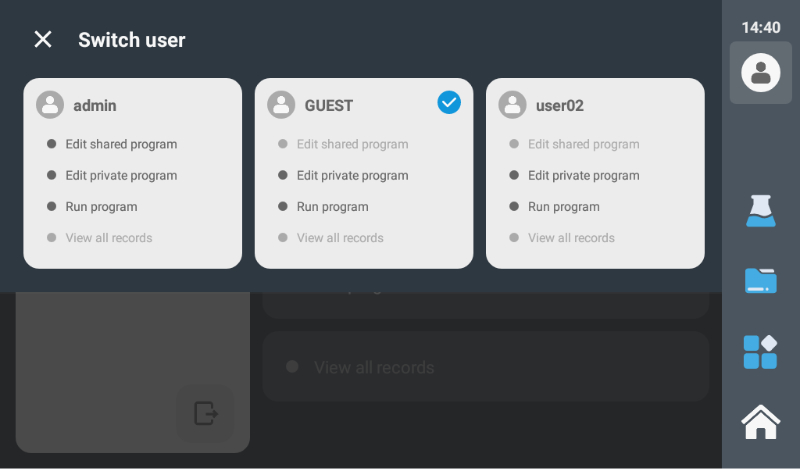

05 User and Permission Management System

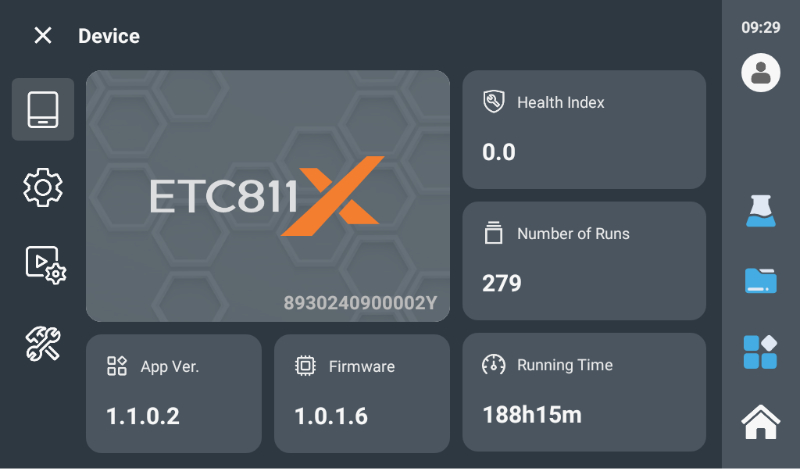

06 Maintenance index, reflecting the health status of the instrument

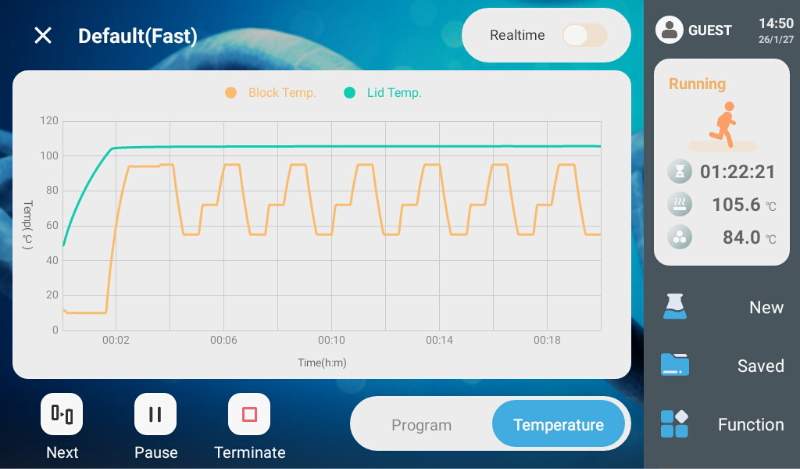

07 More complete parameters during operation and clearer program running status.









03 Performance Parameters



ETC811X Basic Parameters
1 Model ETC811X ETC811X-384 ETC811X-Insitu
2 Block Specification 0.2 mL × 96 wells, aluminum alloy block 384 wells, aluminum alloy block In situ, aluminum alloy block
3 Effective Sample Capacity 96 (Consumables: single tube, 8-tube strip, 12-tube strip, non-skirted plate, semi-skirted plate) 384 (Consumables: Microplate) Customizable
4 Input Power 100–240V~  50/60Hz  1000VA
5 Dimensions (L×W×H) Product: 427×288×227mm     Packaging: 540×450×385mm
6 Weight Net: 9.7kg     Gross: 14.5kg

ETC811X Block Performance Parameters
7 Temperature Accuracy ≤ ±0.1 °C
8 Block Temperature Precision ≤ 0.1 °C
9 Block Temperature Uniformity ≤ ±0.3 °C @ 55 °C
10 Max. Ramp Rate ≥ 5.0 °C/s
11 Avg. Ramp Rate ≥ 2.0 °C/s
12 Block Temperature Control Technology 3 Peltier independently control. Distributed auxiliary heating on block edge



Please contact our sales team for additional performance specifications or product brochures.
